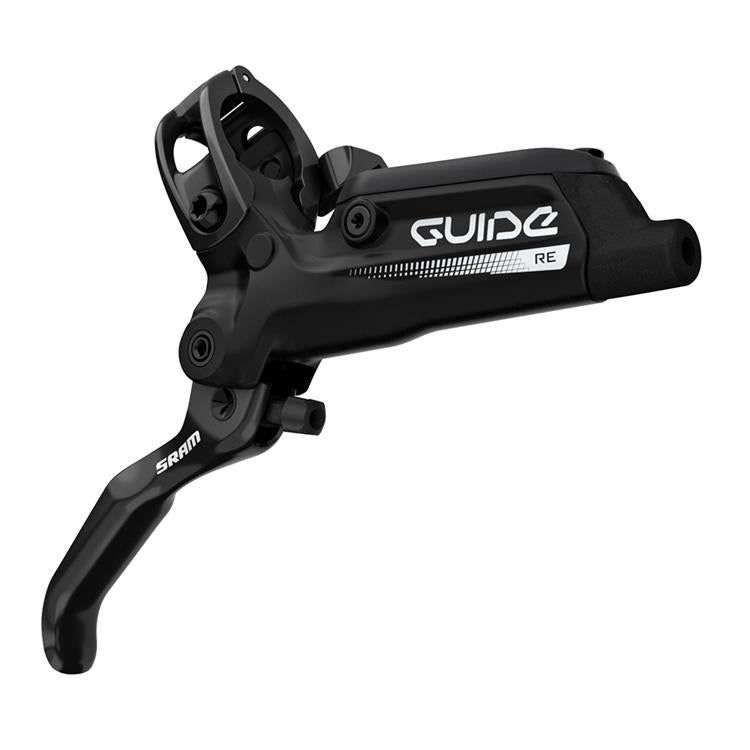

SRAM Guide RE Hydraulic Disc Brakes

THE POWER OF CONTROL

Guide RE is SRAM's optimized braking solution for today's exciting category of E-MTBs, capable of handling the higher average speeds, more intense use and increased mass due to the presence of the motor and battery. It combines SRAM's proven Guide R lever assembly with a powerful 4-piston caliper derived from the gravity-focused Code brakes. Guide RE provides real, usable on-trail control—optimal power and modulation mean speed can be controlled in all terrain and in all situations, both uphill and downhill.

• Guide R lever assembly with proven Guide technologies
• Powerful 4 piston caliper derived from the Code gravity specific brakes
• Sintered pads for better pad life in intensive use
• MatchMaker™ X compatible
• Ambidextrous lever mount
• Tool-free reach adjust

Specifications for Guide RE

WEIGHT 415g (based on direct mount, 800 hose, 160mm CL Rotor)
LEVER MATERIAL Aluminum
CALIPER DESIGN 4 piston caliper derived from the Code gravity specific brakes
FINISH Gloss black
PAD Steel-backed metal sintered
FLUID DOT 5.1
MOUNT Ambidextrous
ADJUSTMENT Tool-free Reach Adjust, Banjo Adjust
PIVOT Bushing
